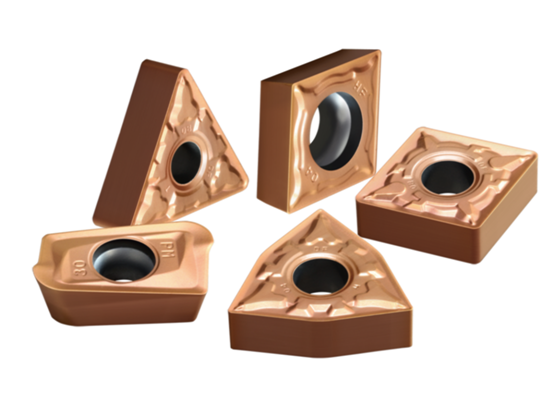

Golden diamond YB9320
Newgeneration PVD coating grade
General-purpose tool for turning and milling in avariety of materials
Unique atomic rearrangement technology for perfectintegration of coating hardness, toughness and thermal stability
Byadopting atomic rearrangement technology, long range orderly arrangement ofdifferent coating materials are achieved with perfect matching of hardness andtoughness, effectively solving the problem of high temperature instability ofmultilayer coating interface, improving the high temperature performance ofcoating
- Nanomultilayer coating with high toughness matrix and TiAlN substrate, unique ionetching technology, strengthening the edge, improving bonding strength betweencoating and substrate
—— Advancedsurface treatment technology, optimized stress distribution, superiorcomprehensive performance

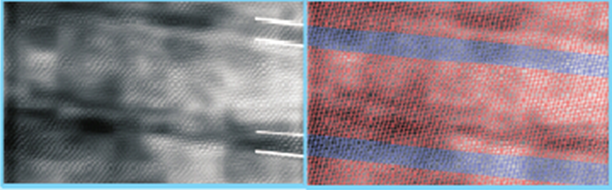

Transmission high resolutionimages
Scope of application:
It is a general purpose insert, suitablefor turning and milling of a variety of materials.
It also can be widely applied in automotive, aerospace,mold and die, ship, IT, rail transport, engineering machinery, generalmachinery industryf.etc and semi-finishing and finish machining of small partssuch as small valves, pipe joint, decoration, etc.
Case 1：
Cutting data：Vc=
Workpiece:flange (Φmax=
Workpiecematerial: stainless steel 316（HRC30)
Machiningstyle: external turning and end face turning
Machine:CNC machine
Insert：YB9320/CNMG120408-ADF

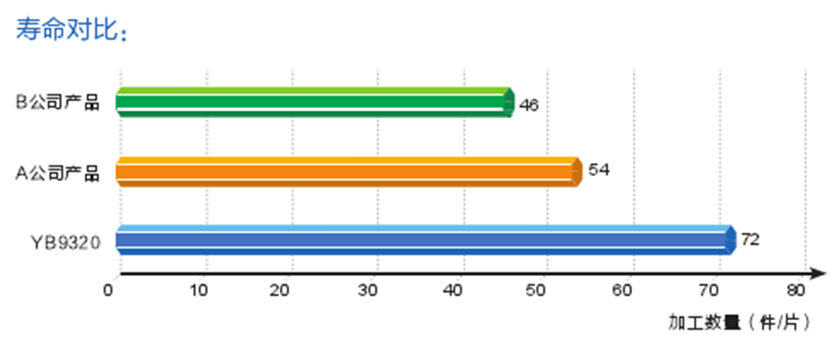

Lifecomparison
Product of CompanyB
Productof Company B
Machiningquantity(pieces/insert)
Result:Surface quality of ZCCCT product obviously superior to that of other companies,and tool life over 30% longer!
Case 2:
Cutting material: NAK80
Materialhardness: HRC28-32
Insert:YB9320/APKT11T308-APM
Tooldiameter: Φ16mm
Coolingstyle: Air cooling
Machiningstyle: cavity machining, layered milling 35*25*16 round corner R9
Cuttingdata: Vc=

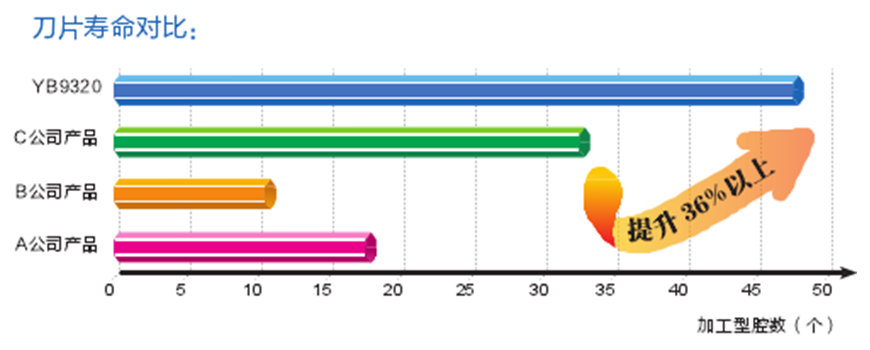

Insert lifecomparison
Product of CompanyC
Product of CompanyB
Product of CompanyA
No. ofmachined cavity (piece)
Improvedby over 36%
